Strength & Durability of Film Faced Plywood in 2025

Explore FOMEX GLOBAL’s film faced plywood strength and durability for harsh conditions. Discover FSC®-certified solutions at fomexgroup.vn.

For contractors and engineers, selecting materials that withstand harsh conditions while ensuring project efficiency is paramount. Film faced plywood, known for its robustness in demanding environments like high humidity and extreme temperatures, is a cornerstone of modern construction. FOMEX GLOBAL, a flagship member of FOMEX GROUP and a leading Vietnam plywood supplier, offers FSC®-certified film faced plywood like FOMEX GREENWOOD and FOMEX PROMAX. This article provides a technical evaluation of the strength and durability of film faced plywood, highlighting its performance in challenging conditions and its alignment with our mission of “Sustainable for Green Life.” Designed for B2B professionals in construction and engineering, this guide empowers you to make informed material choices for your projects.

Why Film Faced Plywood Matters in Construction

Film faced plywood, also known as formwork plywood, is engineered for applications requiring high strength, water resistance, and durability, such as concrete formwork in bridges, buildings, and infrastructure. Its phenolic film coating and robust bonding make it ideal for harsh environments, ensuring smooth concrete finishes and multiple reuses. FOMEX GLOBAL’s film faced plywood, certified by FSC® and compliant with EUDR regulations, combines technical excellence with sustainability, meeting the needs of global contractors and engineers. This evaluation explores the factors that define its strength and durability, as detailed in Why Choose FOMEX GLOBAL Plywood for Your Next Project.

Technical Evaluation of Film Faced Plywood Strength and Durability

1. Core Material and Construction

The strength of film faced plywood begins with its core composition and manufacturing precision.

Core Materials: FOMEX GLOBAL uses FSC®-certified Acacia and Eucalyptus, fast-growing hardwoods known for high density and load-bearing capacity. These materials ensure structural integrity under heavy concrete loads.
Layering and Bonding: Multiple veneer layers, bonded with Water-Boiled-Proof (WBP) Melamine or Phenolic glue, provide resistance to delamination. FOMEX GLOBAL’s double QC process, detailed in The Secret to FOMEX GREENWOOD’s Trustworthiness, ensures uniform thickness and minimal voids, enhancing strength.
Phenolic Film Coating: A phenolic film (135–185g/m²) coats both sides, offering a protective barrier against moisture, abrasion, and chemical exposure. This coating contributes to smooth concrete finishes and extends reuse cycles.

Technical Insight: The high-density core and tight bonding allow FOMEX GREENWOOD to achieve a bending strength of up to 30–40 MPa, suitable for demanding formwork applications.

2. Performance in Harsh Environments

Film faced plywood must endure extreme conditions, including high humidity, temperature fluctuations, and prolonged water exposure.

a. Water Resistance

WBP Glue: FOMEX GLOBAL’s film faced plywood uses WBP Melamine or Phenolic glue, tested to withstand boiling water for 6 to 48 hours, depending on the variant (Single Form to Promax Form). This ensures stability in humid climates, such as those in Southeast Asia or coastal regions.
Film Protection: The phenolic film creates a waterproof barrier, preventing water ingress that could weaken the core. This is critical for formwork exposed to wet concrete or rain.

b. Temperature Resilience

Thermal Stability: FOMEX GLOBAL’s plywood maintains structural integrity in temperatures ranging from -20°C to 60°C, suitable for diverse climates, from Middle Eastern deserts to European winters.
Glue Performance: WBP glue retains bonding strength under thermal stress, preventing warping or cracking during temperature fluctuations.

c. Abrasion and Chemical Resistance

Surface Durability: The phenolic film resists abrasion from concrete and tools, maintaining surface quality over multiple reuses.
Chemical Protection: The film shields against alkaline concrete chemicals, ensuring longevity in aggressive environments.

Technical Insight: FOMEX PROMAX, with up to 15–20 reuses, withstands a surface abrasion resistance of 1,000–1,500 Taber cycles, outperforming standard plywood in durability tests.

3. Load-Bearing Capacity

Film faced plywood’s ability to support heavy loads is critical for formwork applications.

Bending Strength: FOMEX GREENWOOD variants offer bending strengths of 25–40 MPa, depending on thickness (12–35mm). This allows them to support concrete loads without deformation.
Modulus of Elasticity (MOE): With an MOE of 8,000–10,000 MPa, FOMEX GLOBAL’s plywood resists bending under pressure, ensuring formwork stability.
Custom Thickness Options: Available in 4–35mm thicknesses, FOMEX GLOBAL’s plywood can be tailored to specific load requirements, as discussed in Checklist: How to Identify High-Quality Sustainable Plywood.

Technical Insight: For a 1220x2440mm sheet of 18mm FOMEX PROMAX, the maximum load capacity can reach 1,500–2,000 kg/m² under static conditions, ideal for high-rise construction.

4. Reuse Cycles and Cost Efficiency

Durability translates into reuse cycles, directly impacting project costs.

FOMEX GREENWOOD Variants:
- Single Form: 2–3 reuses, suited for small-scale projects.
- Standard Form: 4–6 reuses, ideal for medium-scale construction.
- Premium Form: 8–10 reuses, balancing cost and performance.
- Promax Form: 15–20 reuses, designed for high-intensity projects like skyscrapers or bridges.
Cost Savings: Higher reuse cycles reduce material replacement costs. For example, Promax Form’s 15–20 reuses can save up to 30% compared to lower-grade plywood, as highlighted in Investing in Sustainable Plywood: Long-Term Returns.

Technical Insight: The phenolic film’s thickness (135–185g/m²) and glue quality extend reuse cycles by minimizing surface wear and delamination.

5. Sustainability and Compliance

FOMEX GLOBAL’s film faced plywood aligns strength with environmental responsibility.

FSC® Certification: Sourced from responsibly managed plantations, ensuring zero contribution to deforestation.
EUDR Compliance: Full traceability meets EUDR requirements, facilitating market access in the EU.
Low Emissions: Production processes minimize environmental impact, supporting green construction goals.

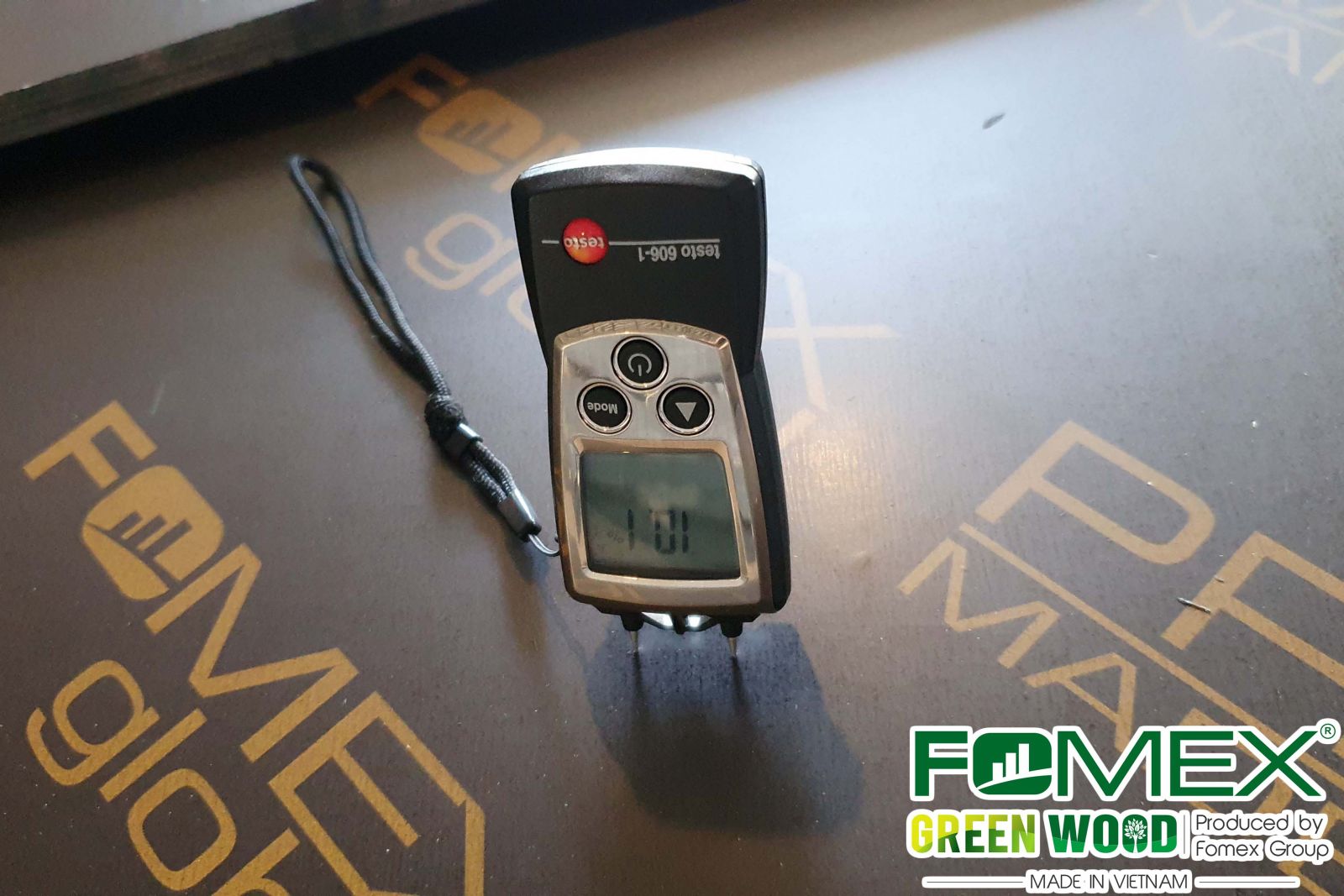

Image: FOMEX GLOBAL factory testing film faced plywood durability. Alt text: FOMEX GLOBAL’s quality control process for film faced plywood.

Applications in Real-World Projects

FOMEX GLOBAL’s film faced plywood excels in diverse construction scenarios:

High-Rise Buildings: Promax Form’s high reuse cycles and load capacity support skyscraper formwork in the Middle East and Asia.
Bridges and Infrastructure: Premium Form’s water resistance ensures durability in humid, coastal environments.
Industrial Projects: Standard Form’s balance of cost and performance suits large-scale industrial formwork.

Why Choose FOMEX GLOBAL’s Film Faced Plywood?

As a trusted Vietnam plywood supplier, FOMEX GLOBAL offers:

Proven Quality: Double QC processes and certifications (FSC®, CARB, EPA, ISO) ensure consistent performance.
Customization: Tailored sizes, thicknesses, and glue types optimize project efficiency.
Global Expertise: Serving over 30 countries with logistics and compliance support.
Sustainability: Eco-friendly production aligns with 2025 green building needs.

How to Select the Right Film Faced Plywood

Assess Project Conditions: Evaluate humidity, temperature, and load requirements to choose the appropriate variant (e.g., Promax for high reuses).
Verify Certifications: Ensure FSC® and EUDR compliance for regulatory and sustainability needs.
Request Technical Data: Review bending strength, MOE, and reuse cycle specifications.
Partner with FOMEX GLOBAL: Contact us for samples, technical consultations, or tailored solutions.

Conclusion

FOMEX GLOBAL’s film faced plywood, including FOMEX GREENWOOD and FOMEX PROMAX, delivers exceptional strength and durability for demanding construction projects. With high load-bearing capacity, water resistance, and up to 20 reuses, our FSC®-certified plywood ensures cost efficiency and environmental responsibility. Engineered for harsh conditions and backed by rigorous quality control, FOMEX GLOBAL empowers contractors and engineers to build with confidence while supporting “Sustainable for Green Life.”
